Oxygen Free Copper Strip

Copper Strip

Special Shaped Copper Strip

Copper Strip & Foil

Copper Strip & Foil Utilizing our proprietary "Up-draw Continuous Extrusion" technology, our copper strips represent the forefront of manufacturing trends. Key Advantages: High Purity & Low Oxygen Excellent Conductivity And Thermal Performance. Excellent weld-ability,Elongation, and Deep-drawing Capabilities.

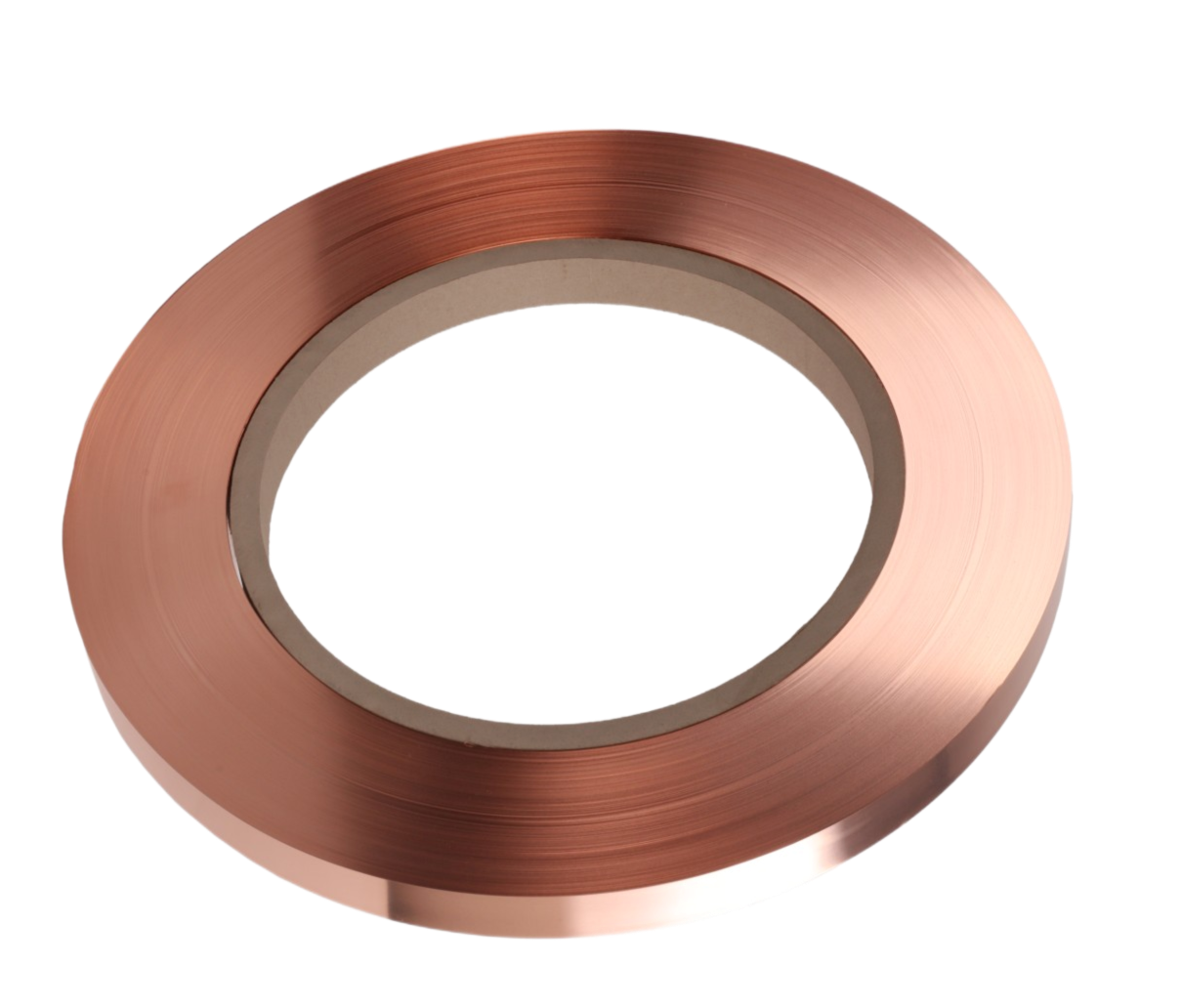

Oxygen Free Copper Strip

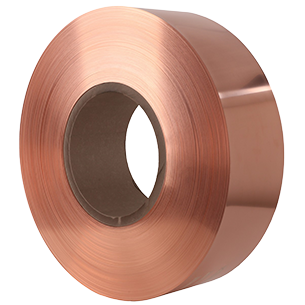

Copper Strip

Special Shaped Copper Strip

Performance Properties:

Alloy	Temper	Tensile Strength(Rm/MPa)	Elongation(A11.3/%)	Vickers hardness(HV)
C1011 C1020	Annealed	195-260	≥30	50－70
	1/4 Hard	215－295	≥25	60－95
	1/2 Hard	245－345	≥8	80－110
	Hard	295－395	≥3	90－120

Performance Properties

Alloy	Temper	Tensile Strength(Rm/MPa)	Elongation(A11.3/%)	Vickers hardness(HV)
C1020 C1100 C1200 C12200	Annealed	195-260	≥30	50－70
	1/4 Hard	215－295	≥25	60－95
	1/2 Hard	245－345	≥8	80－110
	Hard	295－395	≥3	90－120
	Extra Hard (Round copper wire)	≥350	-	≥110

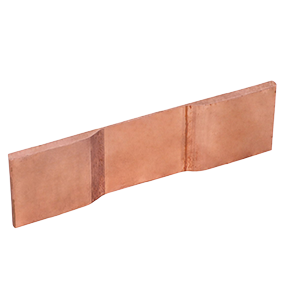

Special-shaped copper strips are manufactured from high-quality electrolytic copper. They feature excellent processability, mechanical properties, electrical conductivity and thermal conductivity, and are widely used in new energy vehicle connectors, lead frames for integrated circuits, electrical terminals and other fields.
