We specialize in CATV cables such as seamless/welded aluminum tube cables and RG access coaxial cables. With multiple internationally advanced production lines such as physical high-foaming lines and continuous extrusion cladding seamless aluminum tube lines.

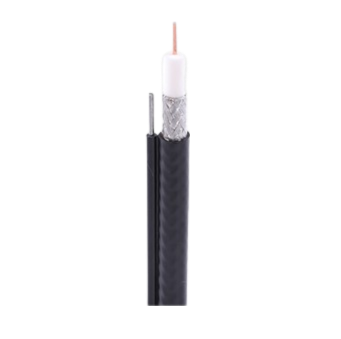

RG Series Coaxial Drop Cable

Seamless Aluminum Tube Trunk Cable Series

Welding Aluminum Tube Trunk Cable Series

Product Introduction:

This series of cables adopt braiding and longitudinal wrapping technology for outer conductor, and are widely used in CATV, satellite receiving, HFC network transmission system, end user distribution system, as well as data transmission, television, telephone, computer and other communication systems in broadband network

Product Features:

This series of products have the characteristics of high transmission power, low VSWR, low transmission loss, high flexibility, good bending performance and good weather resistance.

Technical data:

Model	RG59	RG6	RG11
Inner conductor（mm）	0.81	1.02	1.63
Dielectric （mm）	3.66	4.57	7.11
Outer conductor（mm）	4.5	5.41	8.71
Jacket（mm）	6.1	6.93	10.4
Messenger （mm）	1.3	1.3	1.83
Nominal Braid Coverage	60%-95%	60%-95%	60%-95%
Electrical performance（Nf/km）	50±3	50±3	50±3
Characteristic impedance（Ω）	75±3	75±3	75±3
Velocity（%）	83	83	84
Frequency	Attenuation（dB/100M）
5MHz	2.82	1.9	1.25
55MHz	6.73	5.25	3.15
211MHz	12.47	10	6.23
250MHz	13.45	10.82	6.72
300MHz	14.6	11.64	7.38
350MHz	15.75	12.63	7.94
400MHz	16.73	13.61	8.53
450MHz	17.72	14.43	9.02
500MHz	18.7	15.29	9.51
550MHz	19.52	16.08	9.97
750MHz	22.87	18.54	11.97
870MHz	24.85	20.04	13.31
1000MHz	26.64	21.49	14.27
1450MHz	32.22	25.89	17.36
1750MHz	35.83	28.67	19.52
2050MHz	38.78	31.04	21.13
2250MHz	40.62	32.51	22.18
2500MHz	42.81	34.25	23.36
3000MHz	46.92	37.53	25.62

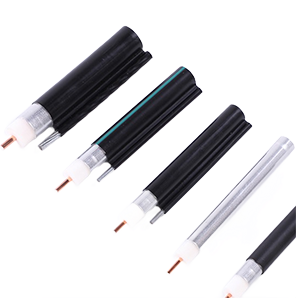

Product Introduction:

This series of cable adopts the integral extrusion process for aluminum tube outer conductor, which is mainly used as CATV trunk line project and signal transmission line.

Product Features:

This series of products has high transmission power, low VSWR, and low transmission loss, good bending performance, good water resistance, and less susceptible to moisture.

Technical data:

Model	LB412	LB500	LB565	LB625	LB750
Inner conductor（mm）	2.26	2.77	3.28	3.48	4.24
Dielectric （mm）	9.19	11.43	13.20	14.35	17.27
Outer conductor（mm）	10.46	12.70	14.35	15.88	19.05
Jacket （mm）	12.07	14.22	15.86	17.40	20.83
Messenger（mm）	2.77	2.77	2.77	2.77	4.78
Electrical performance（Nf/km）	50±3	50±3	50±3	50±3	50±3
Characteristic impedance（Ω）	75±2	75±2	75±2	75±2	75±2
Velocity（%）	87	87	87	87	87
Frequency	Attenuation（dB/100m）
5MHz	0.65	0.52	0.46	0.43	0.36
55MHz	2.26	1.77	1.54	1.51	1.21
211MHz	4.62	3.58	3.12	3.02	2.43
250MHz	5.05	3.94	3.38	3.28	2.66
300MHz	5.57	4.30	3.71	3.54	2.92
350MHz	6.13	4.69	4.04	3.87	3.18
400MHz	6.46	5.02	4.33	4.17	3.45
450MHz	6.92	5.35	4.59	4.43	3.67
500MHz	7.34	5.67	4.89	4.69	3.87
550MHz	7.71	6.27	5.12	5.18	4.30
750MHz	9.12	7.09	6.07	5.84	4.86
870MHz	9.87	7.68	6.56	6.33	5.28
1000MHz	10.73	8.27	7.12	6.79	5.71

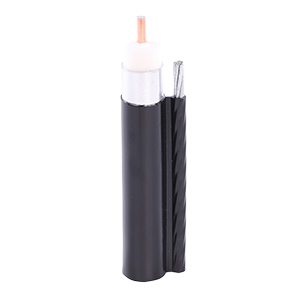

Product Introduction:

This series of cable adopts welding process for aluminum tube outer conductor, which is mainly used as CATV trunk line project and signal transmission line.

Product Features:

This series of products has high transmission power, low VSWR, and low transmission loss, good bending performance, good water resistance, and less susceptible to moisture.

Technical data:

Model	Lb540	Lb715	Lb860
Inner conductor（mm）	3.15	4.22	5.16
Dielectric（mm）	13.03	17.42	21.03
Outer conductor（mm）	13.72	18.16	21.84
Jacket（mm）	15.49	19.94	24.38
Messenger（mm）	2.77	4.78	4.78
Electrical performance（Nf/km）	50±3	50±3	50±3
Characteristic impedance（Ω）	75±2	75±2	75±2
Velocity（%）	87	87	87
Frequency	Attenuation（dB/100m）
5MHz	0.46	0.36	0.3
55MHz	1.54	1.18	1.05
211MHz	3.12	2.43	2.1
250MHz	3.38	2.66	2.3
300MHz	3.71	2.92	2.49
350MHz	4.03	3.18	2.72
400MHz	4.33	3.44	2.89
450MHz	4.59	3.67	3.12
500MHz	4.89	3.9	3.28
550MHz	5.12	4.1	3.48
750MHz	6.07	4.89	4.07
870MHz	6.56	5.31	4.36
1000MHz	7.12	5.74	4.72
