We specialize in electric wires & cable such as fire-resistant and control cables. Supported by reliable quality and excellent performance, we offer diverse solutions. Our products are widely used in electrical appliances, electronic devices, power distribution equipment and large commercial complexes.

Wire

Control Cable

Electric Wires & Cable

Fire Resistant Cable

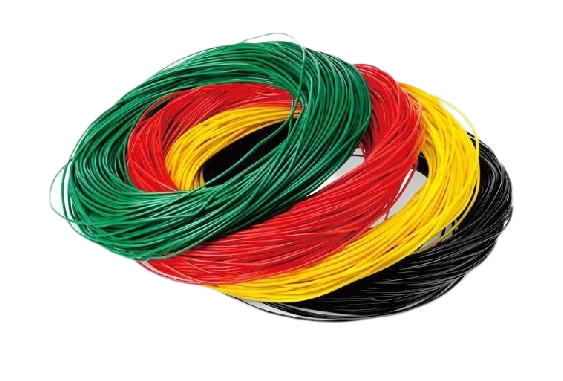

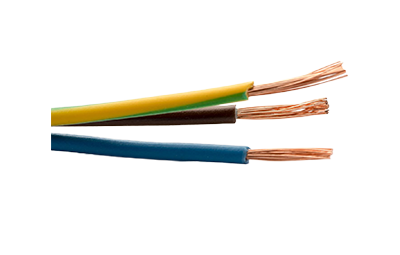

1、PVC Insulated Wire(JB/T8734-2016、GB/T5023-2008)

Application：

This product is fit for ac rated voltage 450/750V.

Model And Name：

Model	Name
BV	Copper core PVC insulation power wire
BVR	Copper core PVC insulation flexible power wire
BVV	Copper Core PVC Insulated PVC sheathed round Wire
BVVB	Copper core PVC insulated PVC sheathed flat cable

2、PVC Insulated Flexible Wire(JB/T8734-2016、GB/T5023-2008)

Application：

This product is fit for ac rated voltage 450/750V and below of domestic electrical appliances, of smaller size motorized tools, of instrument, of various meters and motorized lightning installations.

Model And Name：

Model	Name
RV	Copper core PVC insulation jointed flexible wire
RVB	Copper Core PVC insulation flat jointed flexible wire
RVS	Copper core PVC insulation twisted jointed flexible wire
RVV	Copper Core PVC Insulated PVC sheathed flexible cable
RVV-90	Copper Core 90°C Heat-resistant PVC Insulated PVC Sheathed Flexible Cable

3、PVC Insulation Shielded Wire(JB/T8734-2016 、GB/T5023-2008)

Application：

This product is fit for electric appliances,instruments and meters,elector-equipment and automatic installations with AC rated voltage 300/300V and below.The product standard we adopt is the same as International Electric commission IEC60277(1979).

Model And Name：

Model	Name
AVP	Copper Core PVC Insulated Shielded Wire for Installation
RVP	Copper PVC insulation shielded flexible wire
RVVP	Copper PVC insulation shielded PVC sheath flexible wire
RVVP1	Copper PVC insulation entangled shielded PVC sheath flexible wire

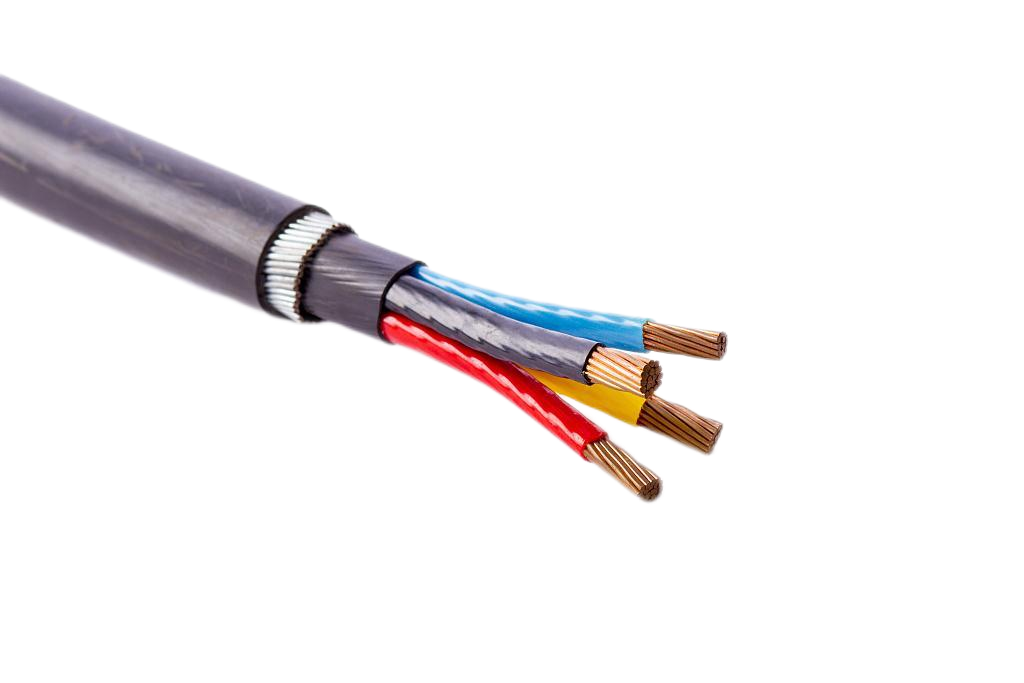

PVC Insulated Sheath Control Cable（GB/T9330-2020）

Application：

The product is suitable for instruments and switch gears that used for signal transmission,control and measurement system with AC rated voltage(U,/U) 450/750V and below,in metallurgy.power and petrol chemical etc.of industrial and mining enterprises.

Model And Name：

Model	Name
KVV	Copper conductor PVC insulated and sheathed control cable
KVVP	Copper conductor PVC insulated and sheathed copper wire braiding screened control cable
KVVP₂	Copper conductor PVC insulated and sheathed steel tape screened control cable
KVV₂₂	Copper conductor PVC insulated and sheathed control cable with steel tape armoured
KVVP_2-22	Copper conductor PVC insulated and sheathed steel tape shield and armoured control cable
KVVRP	Copper conductor PVC insulated and sheathed braided shield flexible control cable

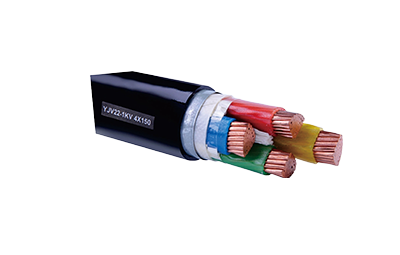

XLPE insulated electric cables(GB/T12706-2020)

Application：

The cable is used in electric transmission and distrbution system operating at rated voltage of 0.6/1,1.8/3,3.6/6, 6/10,8.7/15,12/20,18/30,21/35,26/35kV.

Model And Name：

Model	Name
YJV	Cu conductor, XLPE insulated, PVC sheathed electric cable
YJY	Cu conductor, XLPE insulated, PE sheathed electric cable
YJV₂₂ YJV₂₃	Cu conductor, XLPE insulated, steel tape armoured, PVC or PE sheathed electric cable
YJV₃₂ YJV₃₃	Cu conductor, XLPE insulated, steel wire armoured, PVC or PE sheathed electric cable
W₃₂ W₃₃	Cu conductor, XLPE insulated, steel wire armoured, PVC or PE sheathed electric cable

1、Low-smoke free-halogen flame-retardancy，Fire-resistant wires and cables

Application：

The cable is used in high-rise buildings, hospitals, large libraries, sports stadiums, disaster prevention command and dispatch buildings, train stations, passenger waiting rooms at civil airports, key cultural relic protection sites, as well as subways, underground shopping malls, and densely populated public places.

Model And Name：

Model	Name
WDZN-YJY	Copper core XLPE insulated low-smoke free-halogen flame-retarancy polyolefin fire resistance power cables
WDZN-YJY23	Copper core XLPE insulated steel tape armored-low-smoke free-halogen flame-retarancy polyolefin fire resistance power cables

2、Flexible fire-resistant cable（GB/T 34926-2017、JG/T313-2014）

Application：

The Cable is used in fire protection systems, high-rise buildings, subways, and other places with high fire resistance requirements. Their fire resistance rating reaches Class A (950-1000℃) and can withstand high-temperature burning for over 180 minutes.

Model And Name：

Model	Name
RTTZ YTTW	Copper core mica tape mineral insulated corrugated copper sheath fire-resistant cable
RTTYZ YTTWY	Copper-core mica tape mineral insulated corrugated copper sheath polyethylene outer sheath fire-resistant cable
RTTVZ YTTWV	Fire resistant cable with copper core mica tape, mineral insulation corrugated copper sheath and PVC outer sheath
